series10 Standard
产品描述
- Soft grip ring made of TPU
- 4 lateral spotlights
- Configurable via IO-Link
- With M12 or stranded wire connection
- Illuminated symbols
An HMI Milestone:
The series10 touch buttons impress with their Sensor Fusion Technology and their advanced capacitive measuring principle. The series10 are freely programmable (IO-Link) and unique due to their design and functional concept.
IODDfinder (External Link):
+ To the IODDfinder CANEO series10
CANEO series10 Quick start guide
+ View Video Tutorial
产品图片
![[Translate to Chinesisch:] CANEO series10 Touch Standard](/fileadmin/user_upload/data/fce/CAPTRON-CANEO-series10-Touch-Standard.jpg "[Translate to Chinesisch:] CANEO series10 Touch Standard")

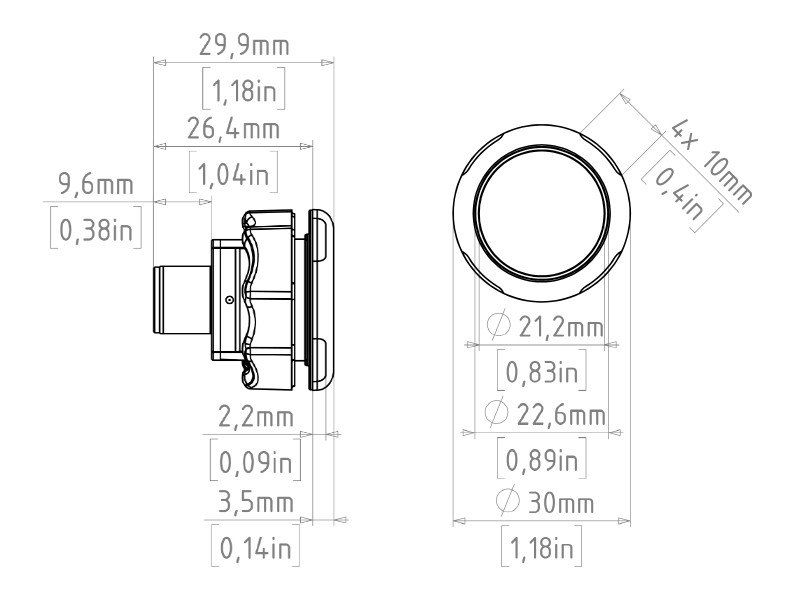

技术图纸
应用图片
外壳颜色
黑色
特征
功能：动态输出（信号时长有限）- 手动
- 功能：静态输出（持续信号）
- 自锁输出功能
- 半自动
全自动
规格
| 供电电压 |
DC 24 V (8,4...32 V) |
| 传感器材质 |
聚碳酸酯(PC) |
| 线数 |
5-针 |
| 电气接口 |
M12 |
| 工作温度 |
-30°C...+65°C |
| 安装 |
安装孔径 22.5 mm |
| IP防护等级 |
前面IP69K |
| IK防护等级 |
IK08 |
| 通讯接口 |
IO-Link V1.1 |
| 输出 |
PNP-NC PNP-NO NPN-NC NPN-NO Push-pull-NC Push-pull-NO |
